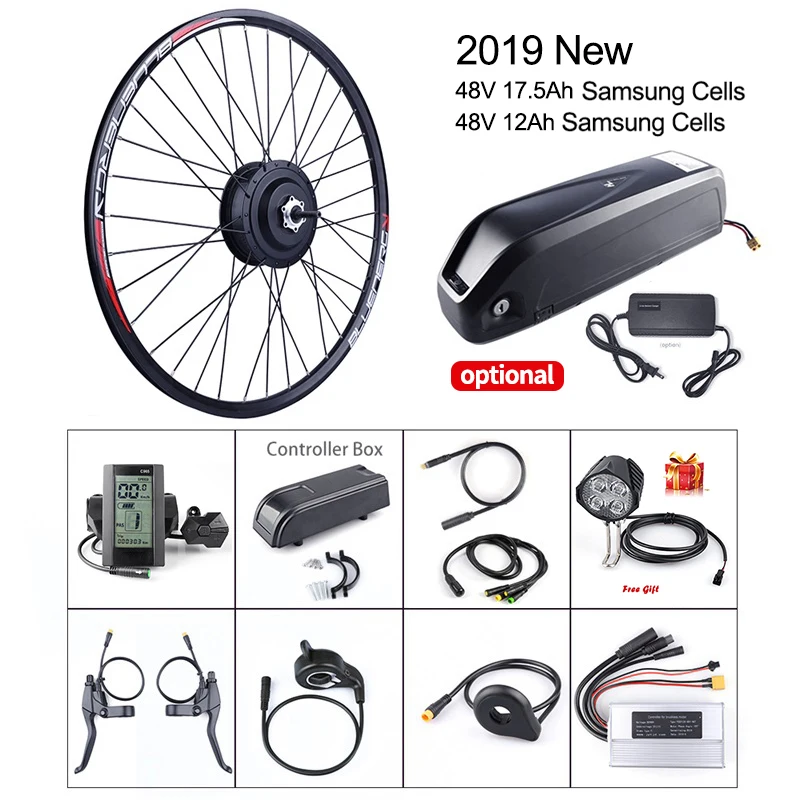

Bafang Front Wheel Hub Motor 48V 500W E-bike Conversion Kits 12Ah 17.5Ah Samsung Cells Lithium Battery Electric Bicycle Parts

Brand Name BAFANG

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Brushless Gear Hub Motor

Motor Type Bafang Q48RM G020.500.D

Rear Wheel 48V 500W Hub Motor E-bike Conversion Kits

Waterproof Rate IP65

Wheel Size 20/26/27.5/700C inch

Efficiency More Than 80%

MAX SPEED (Without Pedaling) 38-40 KM/H

Disc Brake 160mm

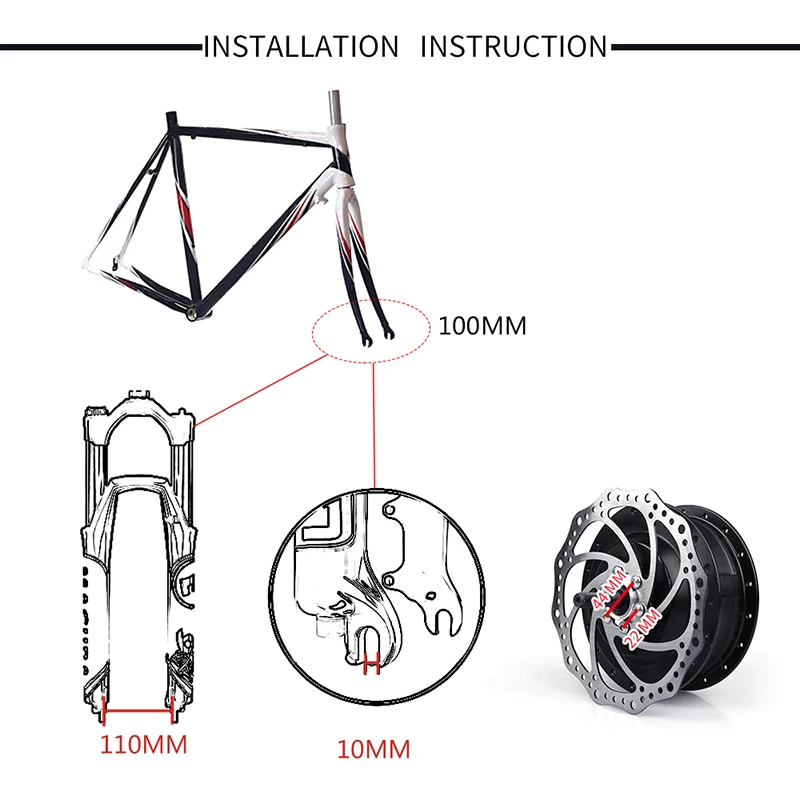

Rear Drop Out Size 100mm

Noise Grade(dB) Lower Than 55

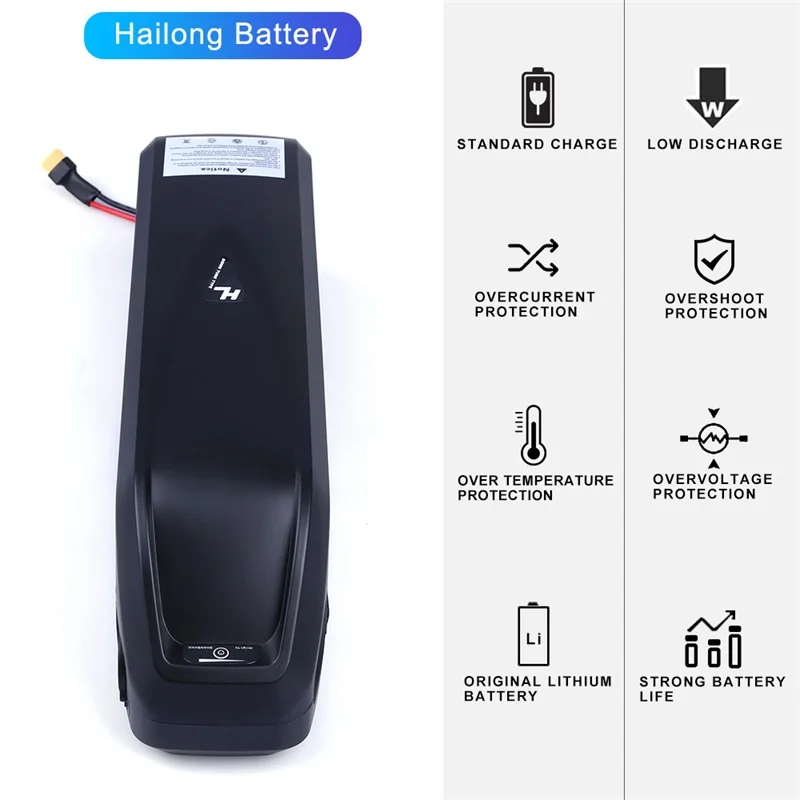

48V 12Ah Battery samsung cell 9*11*37 cm 4.1kg

48V 17.5Ah Battery samsung cell 9*11*37 cm 4.4kg

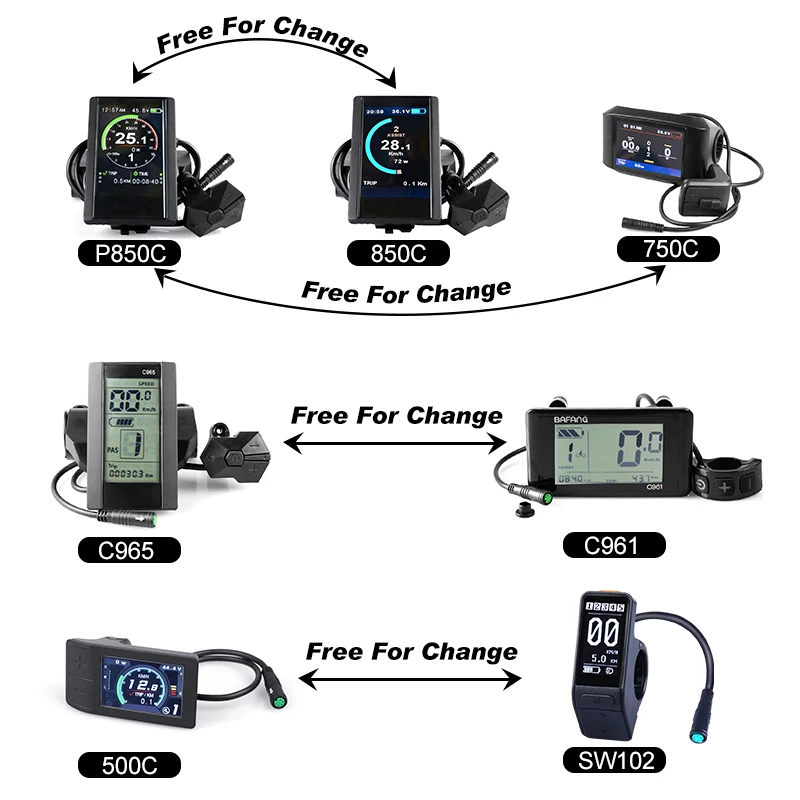

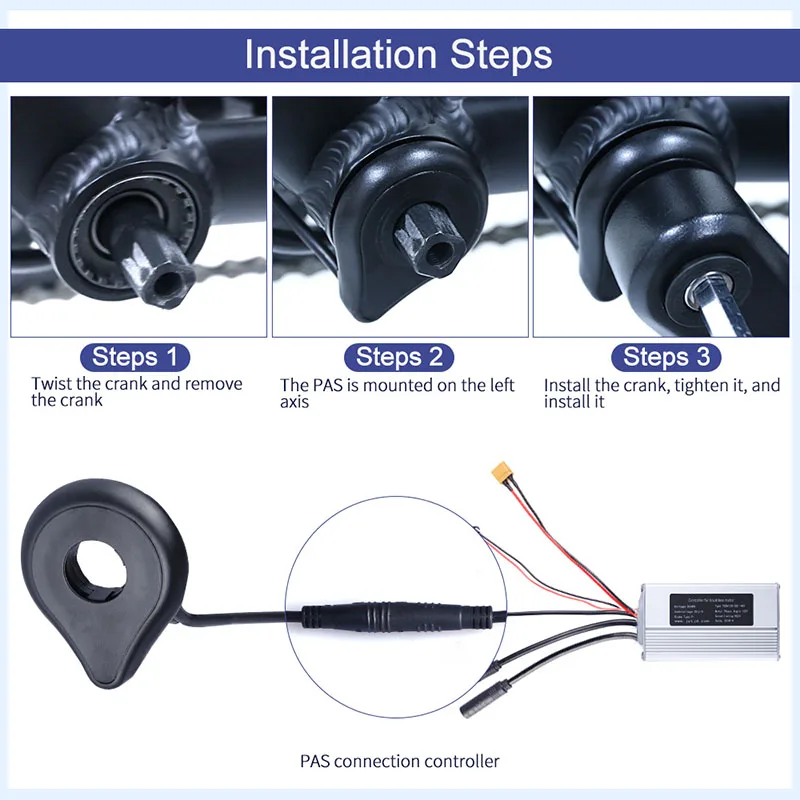

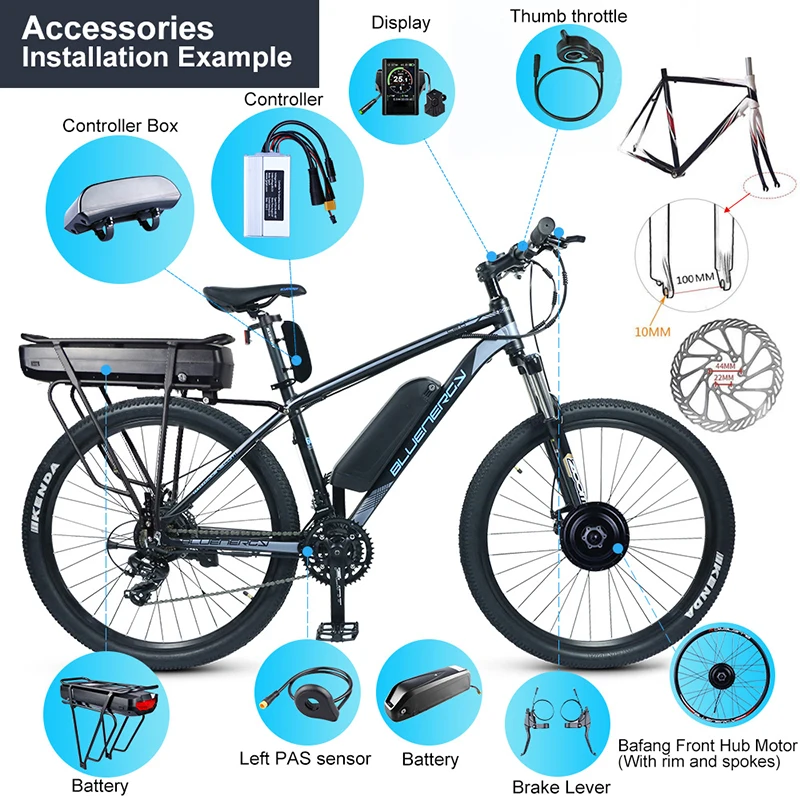

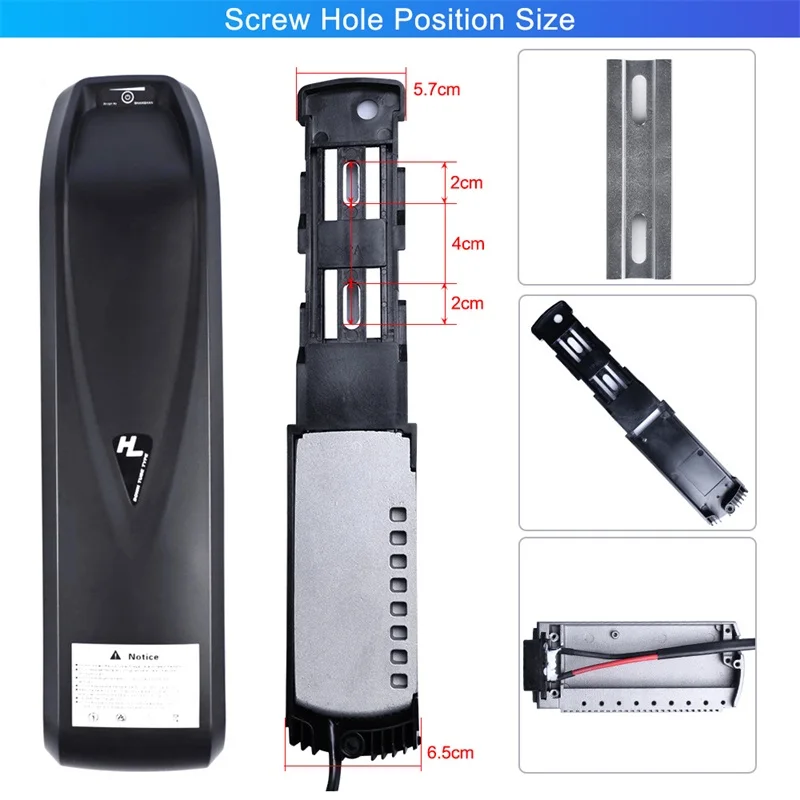

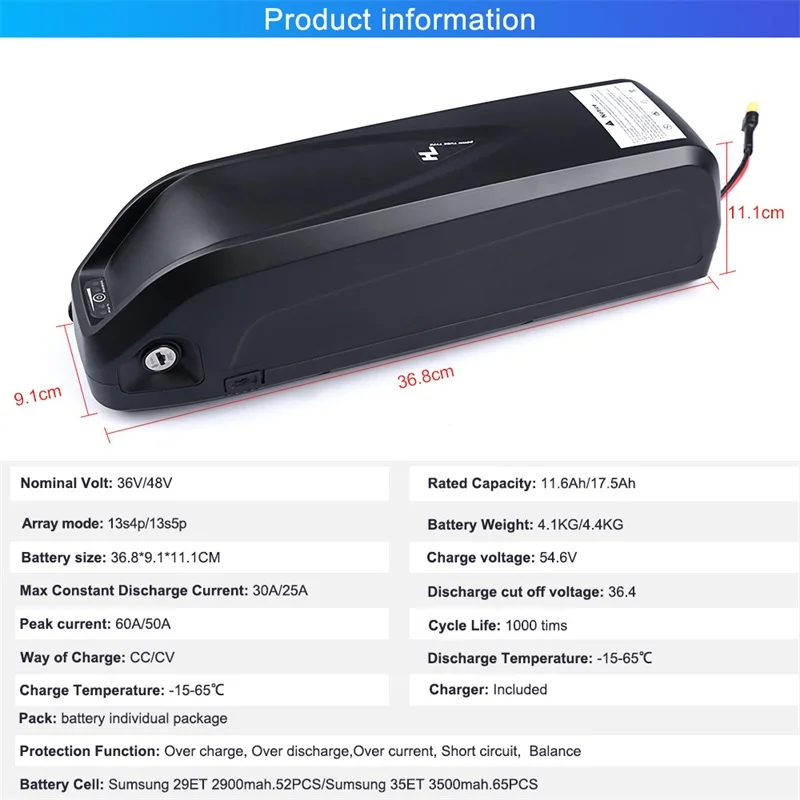

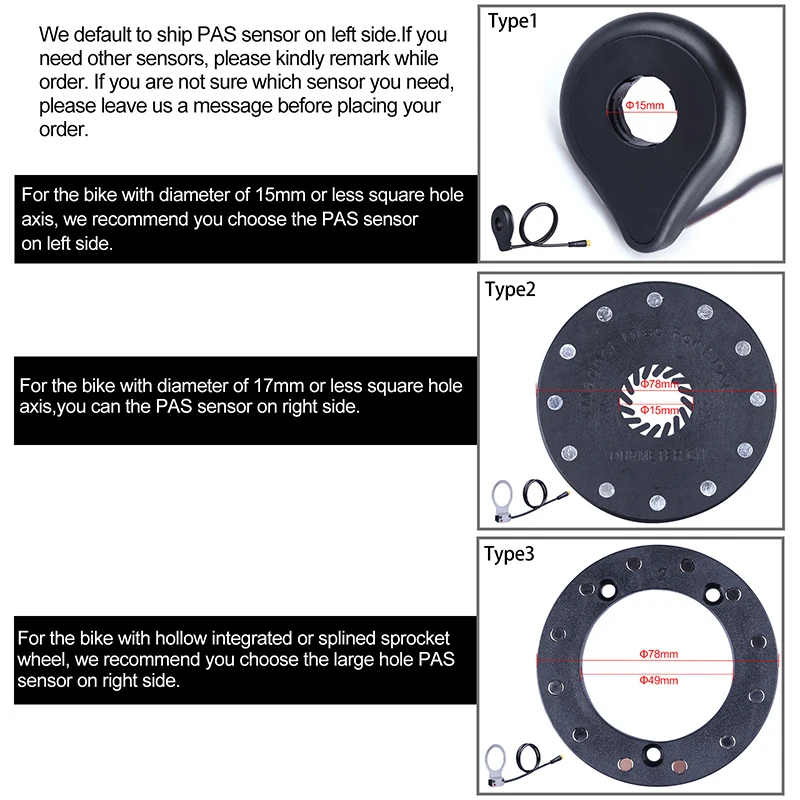

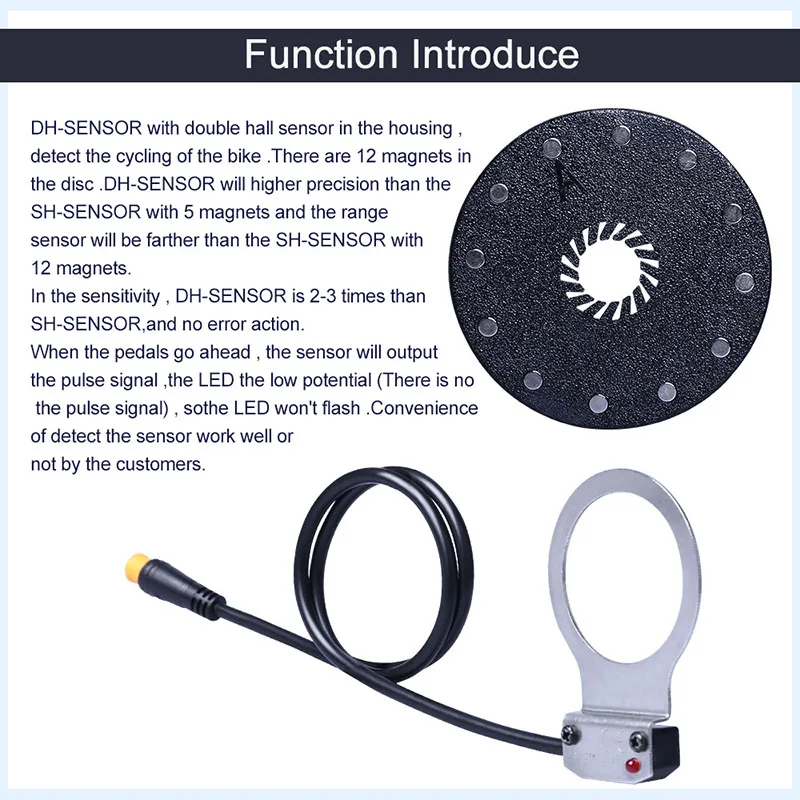

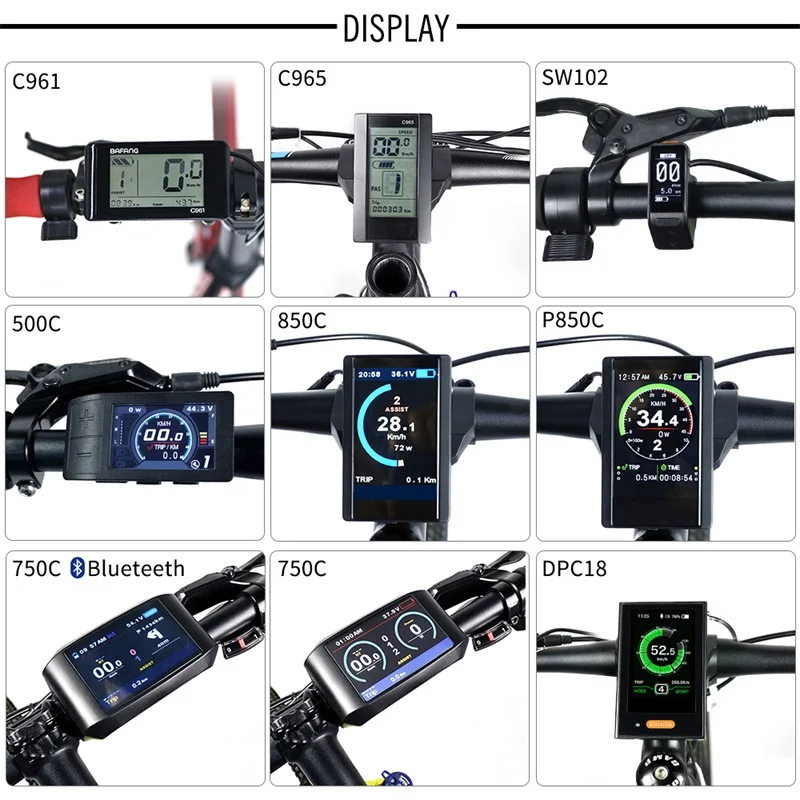

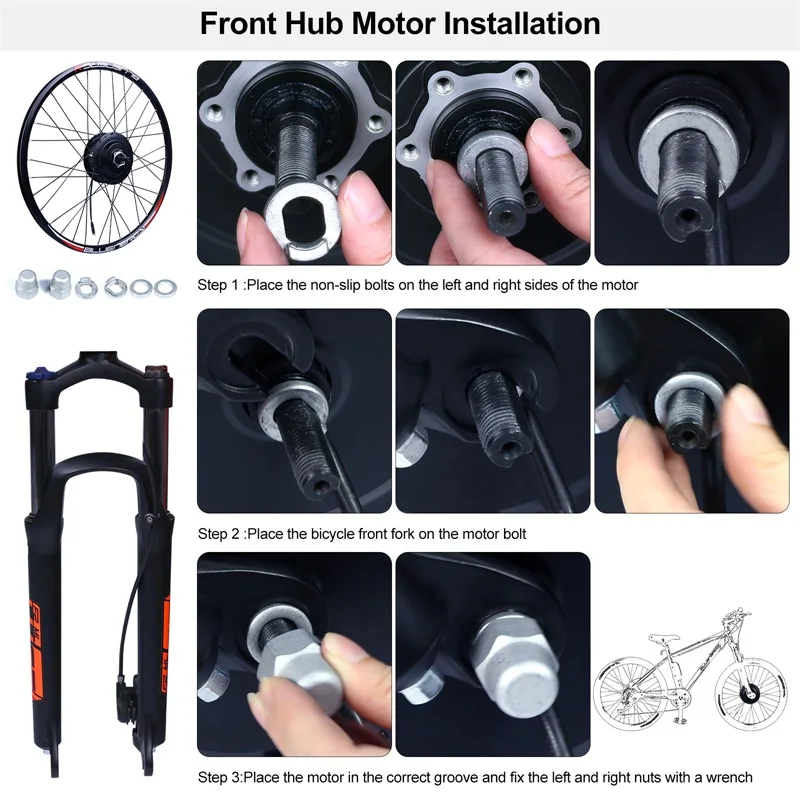

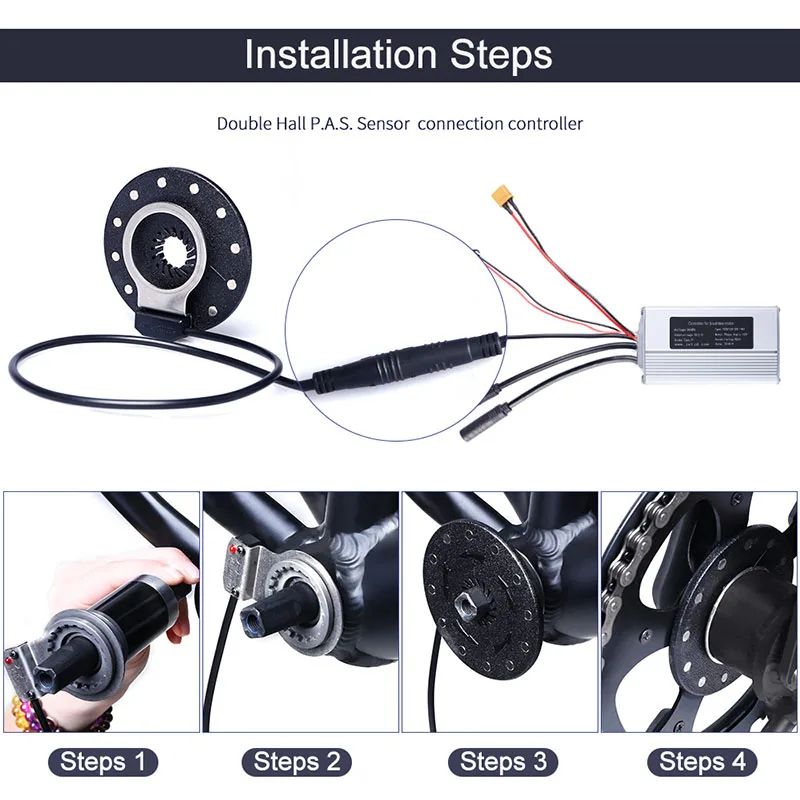

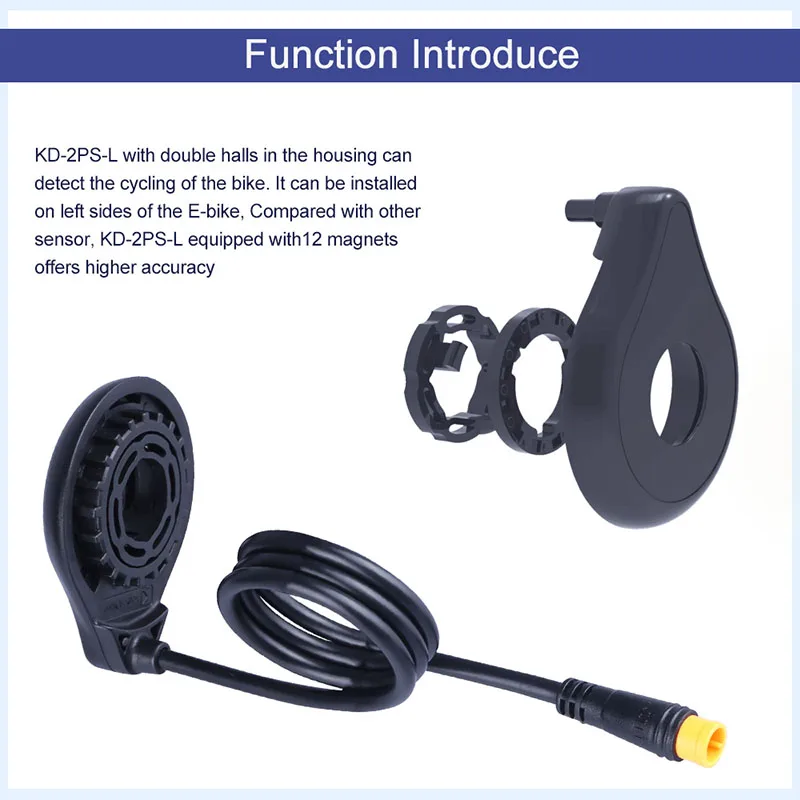

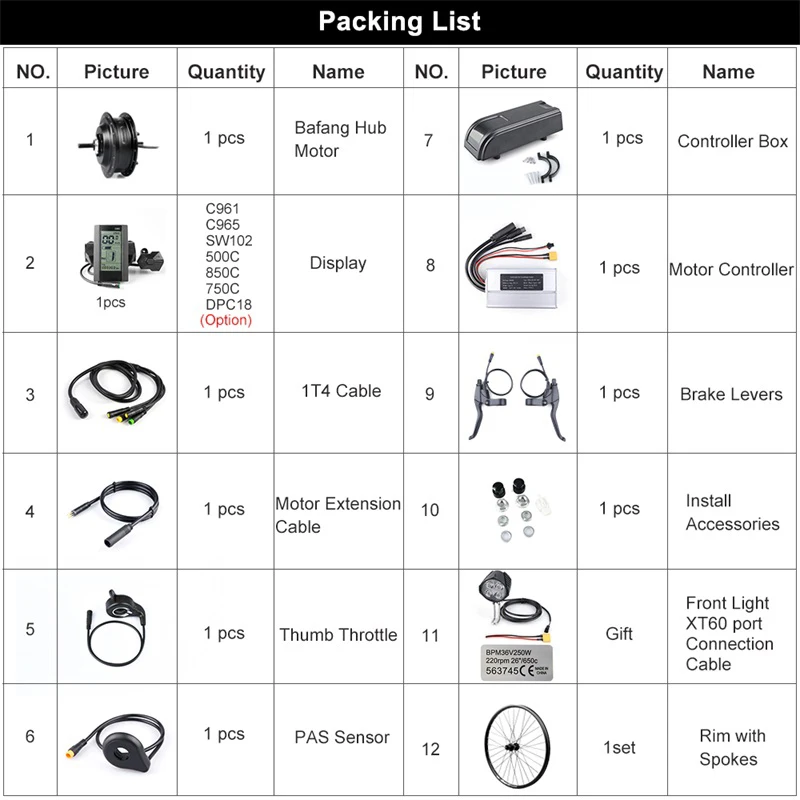

48V 500W Bafang Front Hub Motor Motor Features: Easy to Convert, DIY rear wheel ebike conversion kit for bicycle with frontDrop Out Size"100mm" Flywheel is ≦9 Speeds.Easily convert your pedal bike into a motorized bike within 1-hour. Stable Drive System,This Bafang rear-drive motor, which is compatible with the disc brake, has a rated power of 500W, providing ideal power for vehicles. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes. Super Cost-Efficient,speed up to 38-40 KMH, 470 RPM, efficiency ≥ 80%;Brake Levers cut off the power supply to the motor safely. Complete Accessories,Comes with all necessary accessories. rear wheel & motor, controller, brake level, thumb throttle, controller case,Bafang LCD display (optional),extension cable, PAS,1T4 cable,LED light. ​​ 48V 12Ah Specifications: Normal Voltage: 48V Rated Capacity:12AH Battery Cell:Built in Samsung 29ET 2900mah.52PCSArray mode:13s4p Battery size:367.2*90.1*111mm Battery Weight:4.1KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance Current Limits: 25Ah 48V 17.5Ah Specifications: Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in Samsung 35ET 3500mah.65PCSArray mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.4KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance Current Limits: 30A Controller Features Voltage : DC 48V Undervoltage : ± 39V Current Limiting :18 ± 1A Our Service: PAS Sensor:We have three type PAS sensor for different bicycle axle size with description below,please remark your bicycle axle size onyour order or leave me message. Change Display: Price for (C961=C965)(500C=SW102)(P850C=850C=750C),if you want other display please choice the same price one and remark iton your order or leave me message,i'd be happy to replace it for you. Sensor For Hydraulic Brakes:If you need this hydraulic brake sensor please remark it on your order or leave me message. Warranty:​Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time: We will reply each clients message as soon as possible ,we will not let you wait too long. Packing list : 1 PCS * 48V 500W Front Hub Motor And Front Wheel with Spokes 1 PCS * 48V 500W Motor Controller 1 PCS * Controller Box 1 PCS * Display (C965,C961,500C,P850C,850C,750C,DPC18,750C With Bluetooth) 1 PCS * 1T4 Cable 1 PCS * Motor Extension Cable 1 PCS * Thumb Throttle 1 PCS * PAS Sensor 1 Pair * Brake Lever 1 Sets* Battery With Charger Gifts: 1 * Front Light + 1 * XT60 port connection cable + 250W Label Stickers(Only For EU) ​​ Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage andwrongoperation. Battery,warranty time 12 month except phycial damage andwrongoperation. Accessories,30 days except phycial damage andwrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items mustbe in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kindof you to leave us 5 stares feedback, if you have any problems, don`t hesitate tocontact us,we will do our best to service with you.
